In modern manufacturing, every minute counts, but relying on traditional mechanical fastening methods like rivets and spot welds introduces predictable and costly flaws. For both the Design Engineer and the Production Manager, these issues create significant barriers:
- Labor-Intensive Processes: Riveting and welding are inherently time-consuming, requiring multiple labor steps that slow throughput and increase the Total Non-Value-Added Time (TA) on the assembly line.
- Concentrated Stress Points: Each rivet or weld creates a single point of attachment, leading to concentrated stress points in the material. Under heavy loads or chassis flex, these spots are highly susceptible to fatigue failure and cracking, which compromises long-term structural integrity.
- Corrosion Risk: Joining dissimilar materials, like aluminum panels to a steel frame, with metal fasteners initiates galvanic corrosion at the point of contact, severely limiting product lifespan and durability.
- Noise and Vibration: Rigid, metal-to-metal attachments transfer and amplify constant road noise and vibration (NVH), leading to a poorer quality end-product and driver discomfort.
- Aesthetics: Traditional methods necessitate post-assembly sealing and grinding to conceal fastener heads, complicating the finishing process and compromising the clean, seamless aesthetics required for modern design.

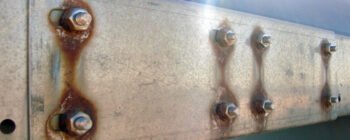

Figure :- Galvanic Corrosion
3M™ VHB™ Tapes are a structural adhesive solution that directly counters the failures of mechanical fastening by transforming the joint itself.
- Streamlined and Faster Assembly: VHB enables DFMA (Design for Manufacture and Assembly) by consolidating multiple steps (drilling, sealing, fastening) into one single application, resulting in a streamlined and faster assembly process.
- Viscoelastic Properties: The unique viscoelastic properties of the acrylic foam allow the tape to absorb energy and distribute stress load over the entire bonded surface area. This eliminates stress concentration points and enhances joint strength.
- Durable Sealing and Environmental Resistance: The tape forms a permanent, immediate seal against moisture, dust, and contaminants, providing durable sealing and environmental resistance against challenging weather conditions.
- Dampens Vibration: The foam core acts as a high-performance damper, which directly dampens vibration and noise, leading to a quieter vehicle operation and increased user comfort.
- Improved Aesthetics: By eliminating visible screws and rivets, VHB enables improved aesthetics, delivering the clean, seamless exterior finish demanded by modern design standards.
- Lightweight: The use of VHB eliminates the need for heavy fasteners, reducing the overall weight of the assembly and contributing to lightweight vehicle design goals.
Figure 2:- 3M™ VHB™ Tapes of different sizes and properties
The technical shift from mechanical fasteners to 3M™ VHB™ Tape is validated not just by engineering principles, but by stringent third-party durability testing, which directly translates to verifiable savings and quality improvements for your fleet.
Performance Metric | Proof from Independent Testing (Bosch Automotive Proving Grounds) | Bottom Line Impact |
Structural Durability & Fatigue Life | 100,000-Mile Endurance: Trailers bonded with VHB Tapes maintained 100% structural integrity after simulating 160,000 kilometres of harsh road conditions. In comparison, 33% of mechanical fasteners failed or came loose at the 60,000-kilometre mark. | QA/Maintenance: Eliminates stress cracking and costly in-field structural failures, dramatically lowering warranty claims. |
Vibration & Noise Reduction (NVH) | Up to 40% Quieter Ride: Testing confirmed VHB-assembled trailers were up to 40% quieter and reduced vibration by up to 30% compared to mechanically fastened counterparts. | End-User Value: Reduces driver fatigue and improves end-product quality, enhancing your brand reputation. |
Process Efficiency | 30%–40% Reduction in Assembly Time | The test validates the single-step bonding/sealing process, eliminating non-value-added labor (drilling, grinding, filling) that adds no structural benefit. |
Aesthetics & Rework | Zero Post-Assembly Rework Required: The invisible bond eliminated the need for sealant cure time and bodywork rework. Taped joints remained smooth, even after exposure to heat cycles up to 880C. | Finishing Manager: Achieves a premium, seamless exterior that resists buckling and simplifies painting/decal application. |
Figure 3:- 3MTM VHBTM Tapes lead to less arduous labour, assembly time, and NVH than mechanical fasteners
The data is clear: continuing to use traditional mechanical fastening methods for commercial vehicle assembly introduces predictable, measurable costs in labor, time, and long-term structural integrity. 3M has engineered the definitive solution to these challenges. By utilizing the advanced viscoelastic technology of 3M™ VHB™ Tapes, manufacturers move away from the limitations of stress concentration and corrosion risk.
This shift represents a strategic investment in the quality of the final product and the efficiency of the assembly line. The proven results—from zero fastener failure under severe durability testing to substantial labor time reduction—make this 3M solution the necessary foundation for modern, lightweight, and high-performance vehicle manufacturing.
The next step is to initiate the process review required to implement these changes effectively. Contact our team today to begin your structural bonding consultation and secure genuine 3M™ VHB™ Tapes.
